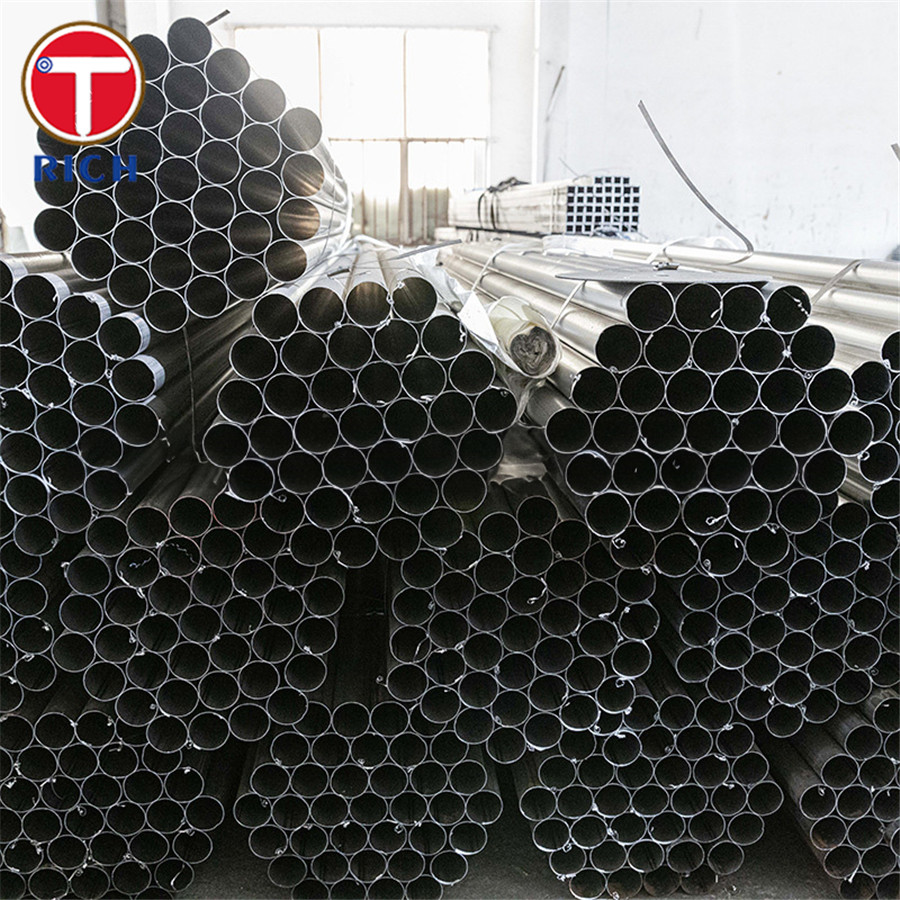

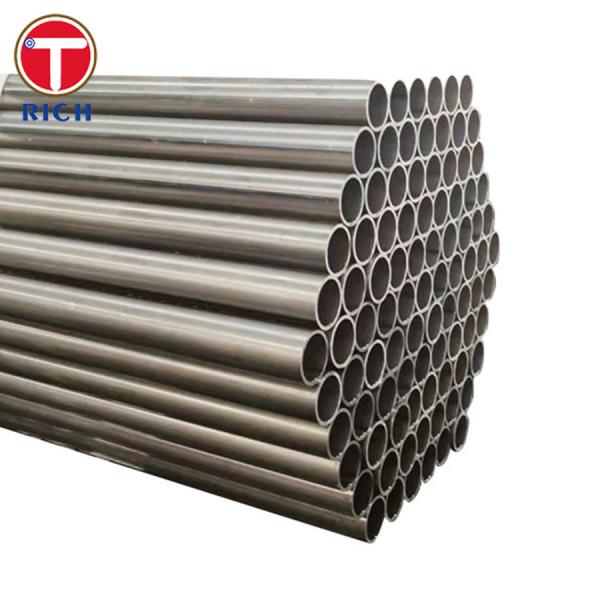

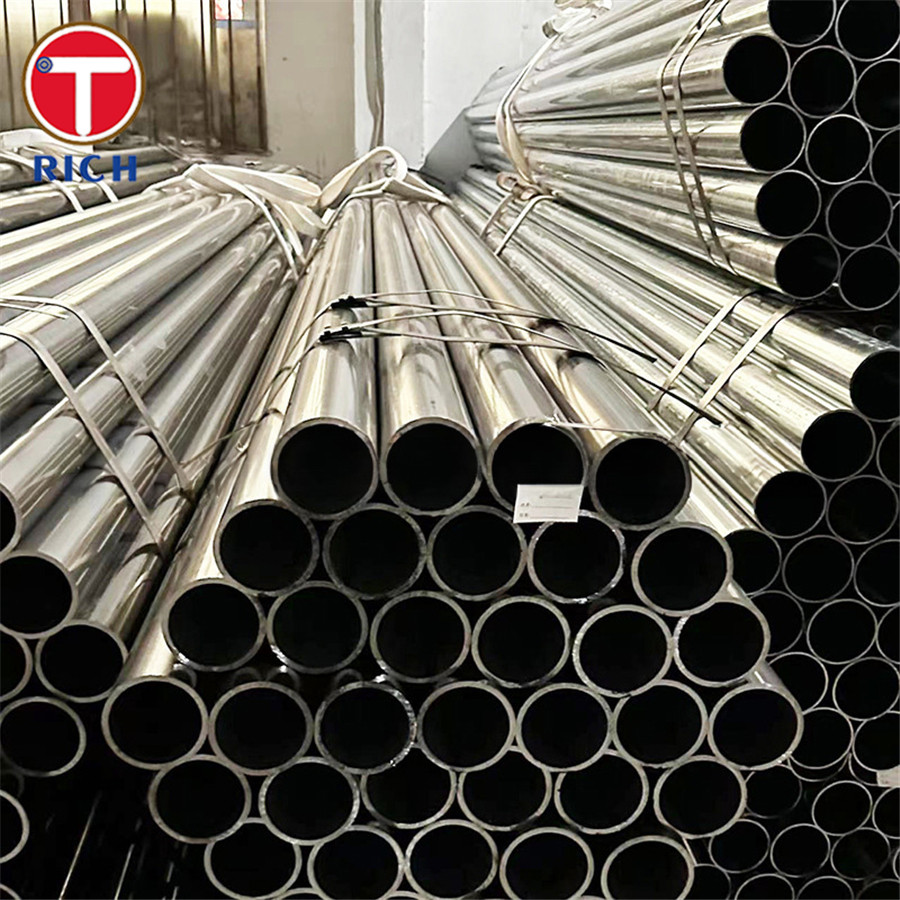

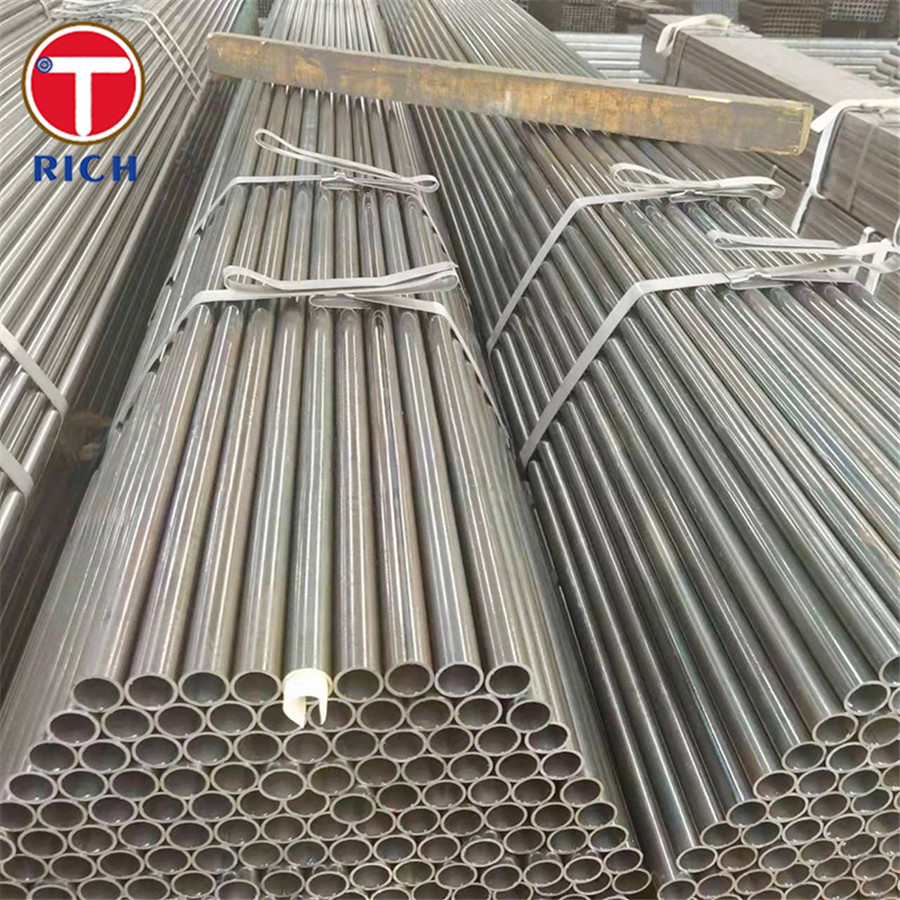

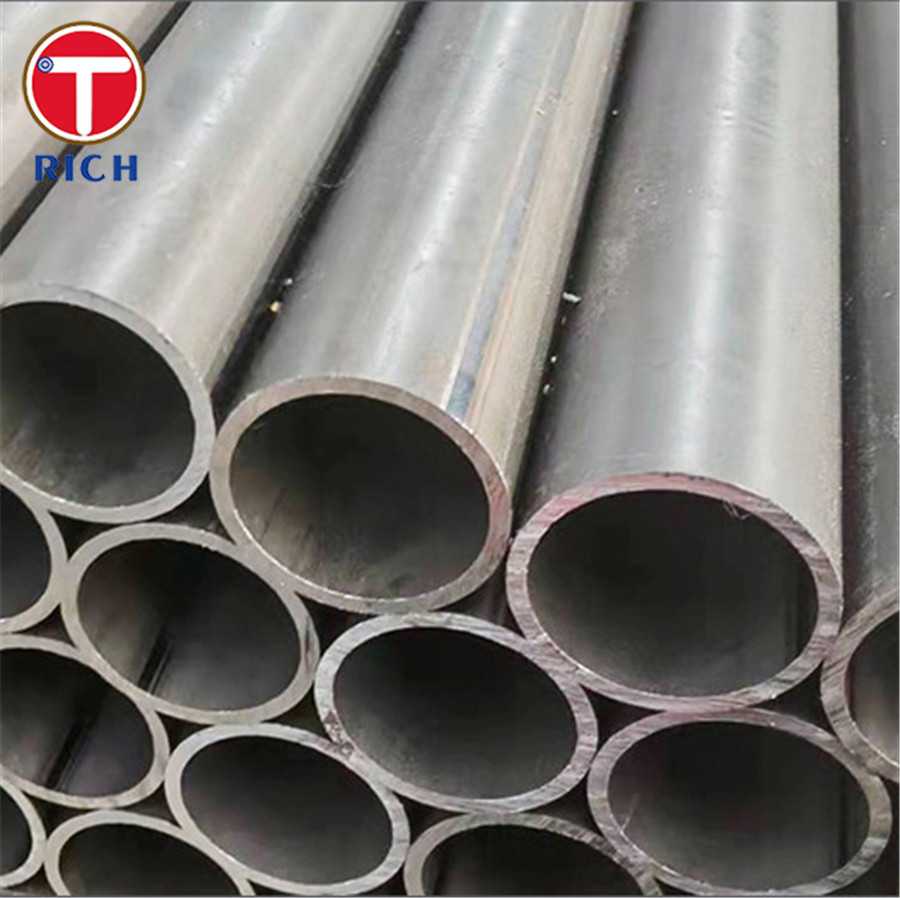

GB/T 28413 ERW Steel Pipe Welded Carbon Steel Tube For Heat Exchanger
Material
GB/T 28413 specifies the requirements for Electric Resistance Welded (ERW) steel pipes, primarily used in heat exchangers. They are made from high-quality carbon steel, which provides excellent thermal conductivity and structural stability, making them ideal for the rigorous demands of heat exchanger applications.
Specification
- Standard: GB/T 28413
- Type: ERW Steel Pipe
- Outer Diameter: Usually ranges from 21.3 mm to 660 mm
- Wall Thickness: From 2.0 mm to 20.0 mm
- Length: Typically 6 m or custom lengths as required
- Ends: Plain, beveled, or threaded
- Surface Treatment: Galvanized, black or as specified
- Heat Treatment: Normalized or as required per application
Key Features
- High Strength and Durability: Ensures long-term performance.
- Good Thermal Conductivity: Ideal for efficient heat transfer applications.
- Corrosion Resistant: Enhanced lifespan in corrosive environments.
- Cost-effective: Offers a balance of performance and affordability.
- Versatility: Available in various sizes and thicknesses.
Chemical Composition
| Element | Minimum % | Maximum % |
| Carbon (C) | - | 0.20 |
| Silicon (Si) | - | 0.35 |
| Manganese (Mn) | 0.30 | 1.20 |
| Phosphorus (P) | - | 0.040 |
| Sulfur (S) | - | 0.040 |
Note: The exact chemical composition may vary slightly depending on specific grades and customer requirements.
Mechanical Properties
| Property | Value |
| Tensile Strength (MPa) | 340 to 490 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 24 |
| Impact Energy (J) | ≥ 27 at 20°C |
The mechanical properties are indicative and may be subjected to quality tests.
Steel Grade
Common steel grades for GB/T 28413 include Q195, Q215, Q235, Q345, tailored to meet varying mechanical and chemical demands. These grades provide different levels of strength and durability while maintaining compliance with industry standards.
Application
ERW steel pipes under GB/T 28413 are widely used in:
- Heat Exchangers
- Boilers
- Pressure Vessels
- Air Coolers
- Condensers
- Automotive Components
Their adaptability makes them a preferred choice in sectors such as power generation, petrochemical, and manufacturing.
Possible Alternative Grades
While GB/T 28413 covers specific requirements, alternative standards or grades can be used provided they meet performance criteria. Possible alternatives include:
- ASTM A179
- ASTM A192
- EN 10217
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.

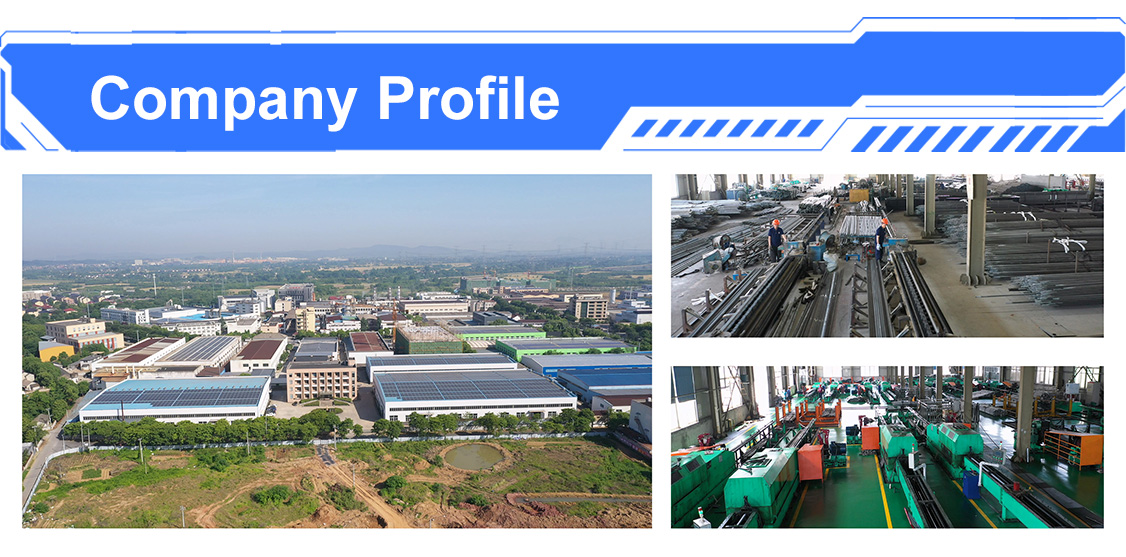

The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|
