EN10305-3 E155 E190 E195 E220 E235 Welded Cold Sized Tubes For Precision Applications
Material
EN10305-3 specifies the requirements for welded cold sized tubes used in precision applications. These tubes are manufactured from high-quality steel grades, ensuring durability and performance in various industrial applications.
Specification
The standard outlines the dimensions, tolerances, and mechanical properties of the tubes, ensuring they meet the necessary criteria for precision engineering. The tubes are typically used in applications requiring high dimensional accuracy and surface finish.
Key Features
- High Precision: Manufactured to tight tolerances for exact fit and performance.
- Welded Construction: Provides strength and integrity while allowing for various shapes and sizes.
- Cold Sizing: Enhances dimensional accuracy and surface finish.
- Versatile Applications: Suitable for various industries, including automotive, aerospace, and machinery.
Chemical Composition
| Steel Grade | C (%) | Si (%) | Mn (%) | P (%) | S (%) | Cr (%) | Ni (%) | Mo (%) |
| E155 | 0.12 | 0.25 | 0.60 | 0.025 | 0.015 | 0.20 | 0.20 | 0.10 |
| E190 | 0.15 | 0.25 | 0.80 | 0.025 | 0.015 | 0.25 | 0.25 | 0.10 |
| E195 | 0.20 | 0.25 | 0.90 | 0.025 | 0.015 | 0.25 | 0.25 | 0.10 |
| E220 | 0.25 | 0.25 | 1.00 | 0.025 | 0.015 | 0.30 | 0.30 | 0.10 |
| E235 | 0.25 | 0.25 | 1.20 | 0.025 | 0.015 | 0.30 | 0.30 | 0.10 |
Mechanical Properties
| Steel Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) |
| E155 | 155 | 350-450 | 20 | 120-160 |
| E190 | 190 | 400-500 | 20 | 130-170 |
| E195 | 195 | 410-510 | 20 | 130-170 |
| E220 | 220 | 450-550 | 20 | 140-180 |
| E235 | 235 | 480-580 | 20 | 140-180 |
Steel Grade
The EN10305-3 standard includes several steel grades, each designed for specific applications and performance requirements. The grades E155, E190, E195, E220, and E235 represent varying yield strengths and chemical compositions.
Application
Welded cold sized tubes are widely used in:
- Automotive Industry: For structural components and chassis.
- Aerospace: In the manufacture of aircraft components.
- Machinery: For precision parts in various machines.
- Hydraulic Systems: For pipes and fittings requiring high pressure.
Possible Alternative Grades
While EN10305-3 grades are specifically tailored for precision applications, alternative grades may include:
- EN 10210: Hot-finished structural hollow sections.
- EN 10219: Cold-formed welded and seamless structural hollow sections.
- ASTM A500: Standard specification for cold-formed welded and seamless carbon steel structural tubing.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|

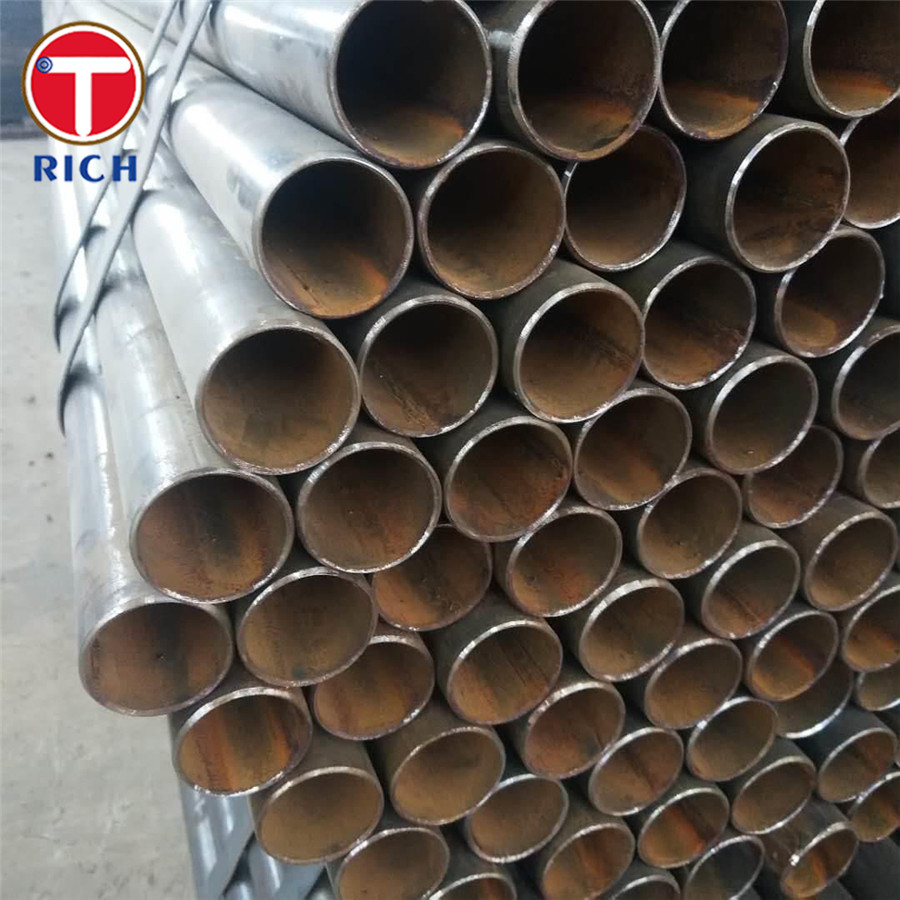

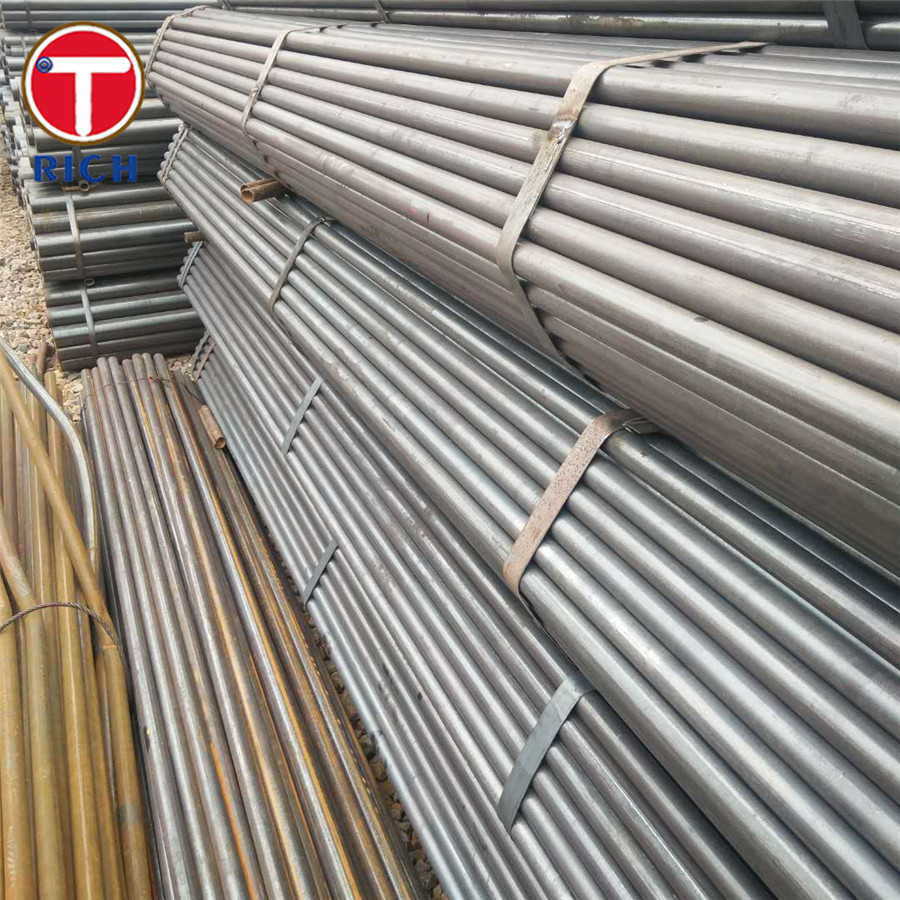

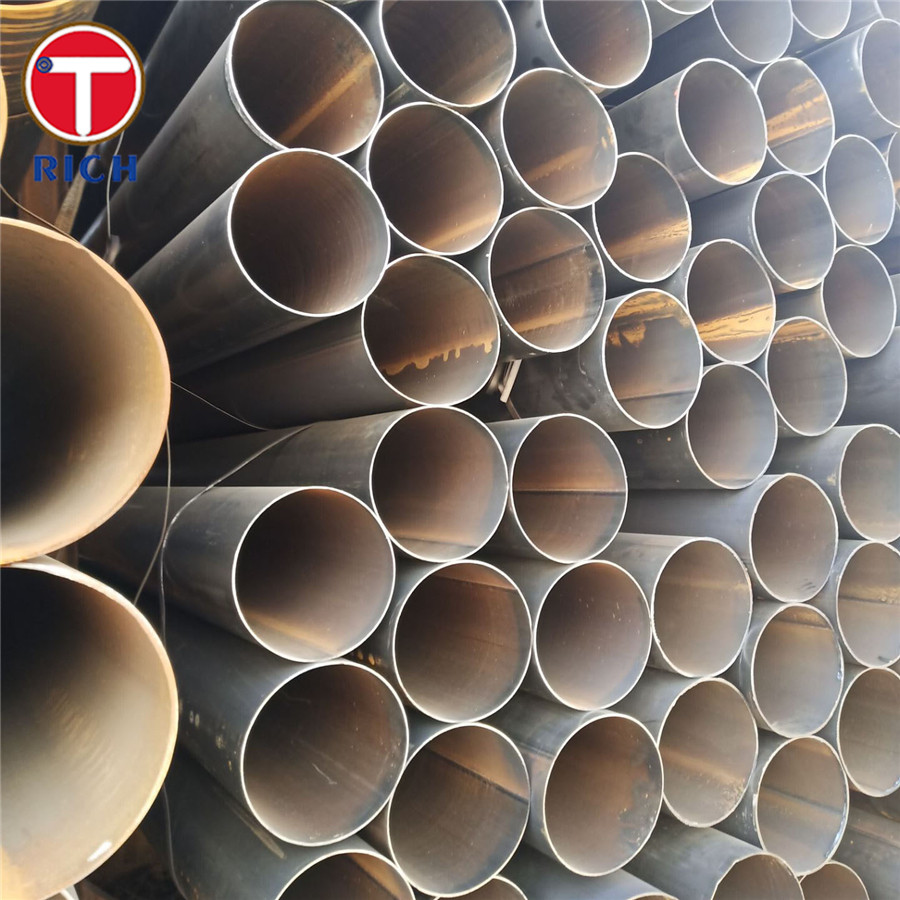

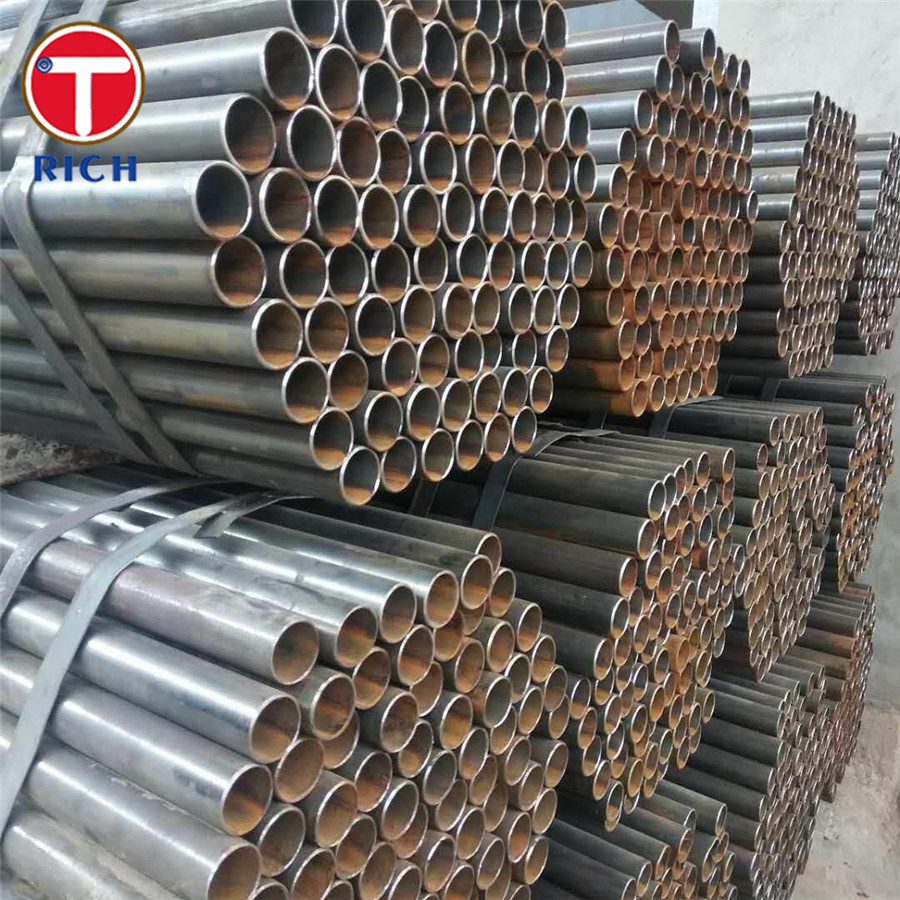

EN10305-3 E355 Welded Cold Sized Tubes For Precision Applications Images
|
